Windows for clean rooms offered by INEX comply with strict GMP standards and the international standard GOST R ISO 14644-4-2002 and are manufactured using in-house technologies. They are compatible with any cladding system, including sandwich panels and gypsum wall panels. The frame is made of powder-coated or anodized aluminum profiles, and the glazed elements are made of tempered safety glass. It is also possible to manufacture fireproof window units with frosted glazing, built-in blinds or electronic glass transparency control.
INEX supplies various types of cleanroom airlocks. Among them are pass-through blow-off sluices, transfer sluices-chambers for various materials, inspection and pharmaceutical windows.
Pass-through blow-off locks, also called "air showers", serve to prevent direct ingress of aerosol particles during the transfer of personnel to the cleanroom (cleanliness class - from 5 to 8 according to GOST ISO 16644). Automatic blocking of simultaneous opening of doors and active air cleaning of personnel clothing from contaminated particles and carbon dust by means of a high-speed flow of filtered air are carried out in the passage blowing gates. The filter ventilation module (FVM) of the air sluice supplies purified air to the chamber through ceiling or side nozzle diffusers and simultaneously absorbs it in the air intakes located in the lower part of the chamber, thereby ensuring its recirculation through high-efficiency HEPA filters.
The characteristics of the gateways supplied by INEX are a reliable welded, sealed gateway body made of steel with a chemical resistant coating, sealed doors with double glazing, double sealing contour and a smooth hygienic surface, a single system unit for automating all operations, smooth hygienic surfaces that meet the GMP standard. The gateways are equipped with modern air purification ventilation units from Russian and foreign manufacturers, which the customer can choose from available ones.

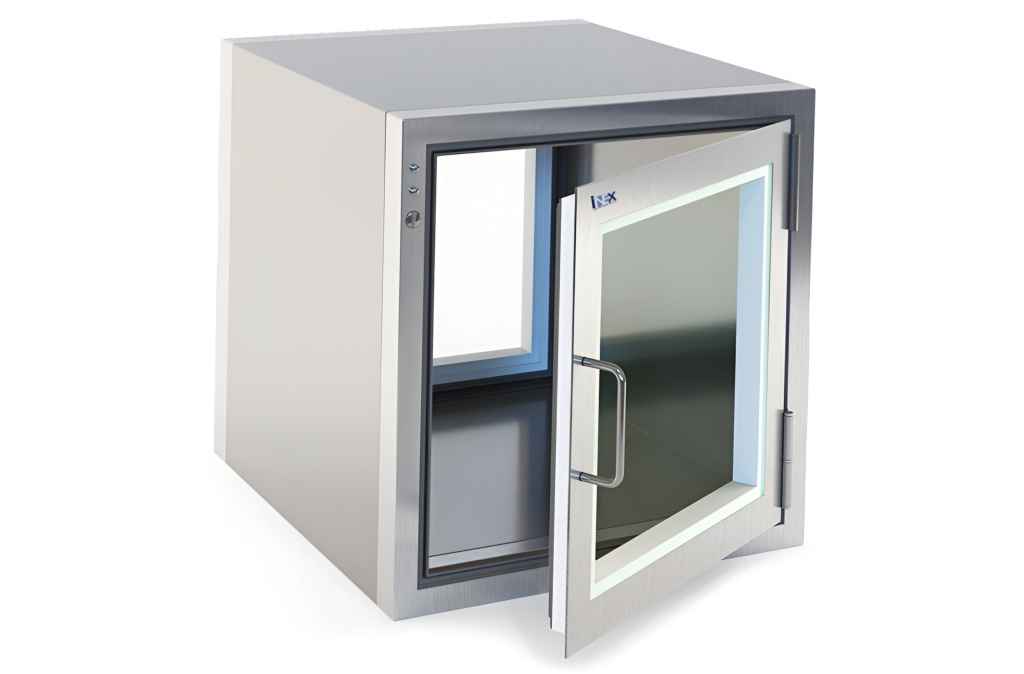

Transfer gates are sealed chambers for transferring material to premises with different cleanliness classes. INEX supplies transfer gates made on the principle of modular designs, which have any shape or dimensions of the chamber, depending on the customer's requirements, including passive (with UV irradiation) or active (with UV irradiation, blowing cycles and air filtration), with systems indication, door lock and access control. They can be integrated into any system of enclosing structures and have a sealed all-welded body, sealed doors, smooth hygienic surfaces, and effective active cleaning units. The design provides electrical or mechanical alternate automatic blocking with a system of light and sound signaling of the camera operating modes.
