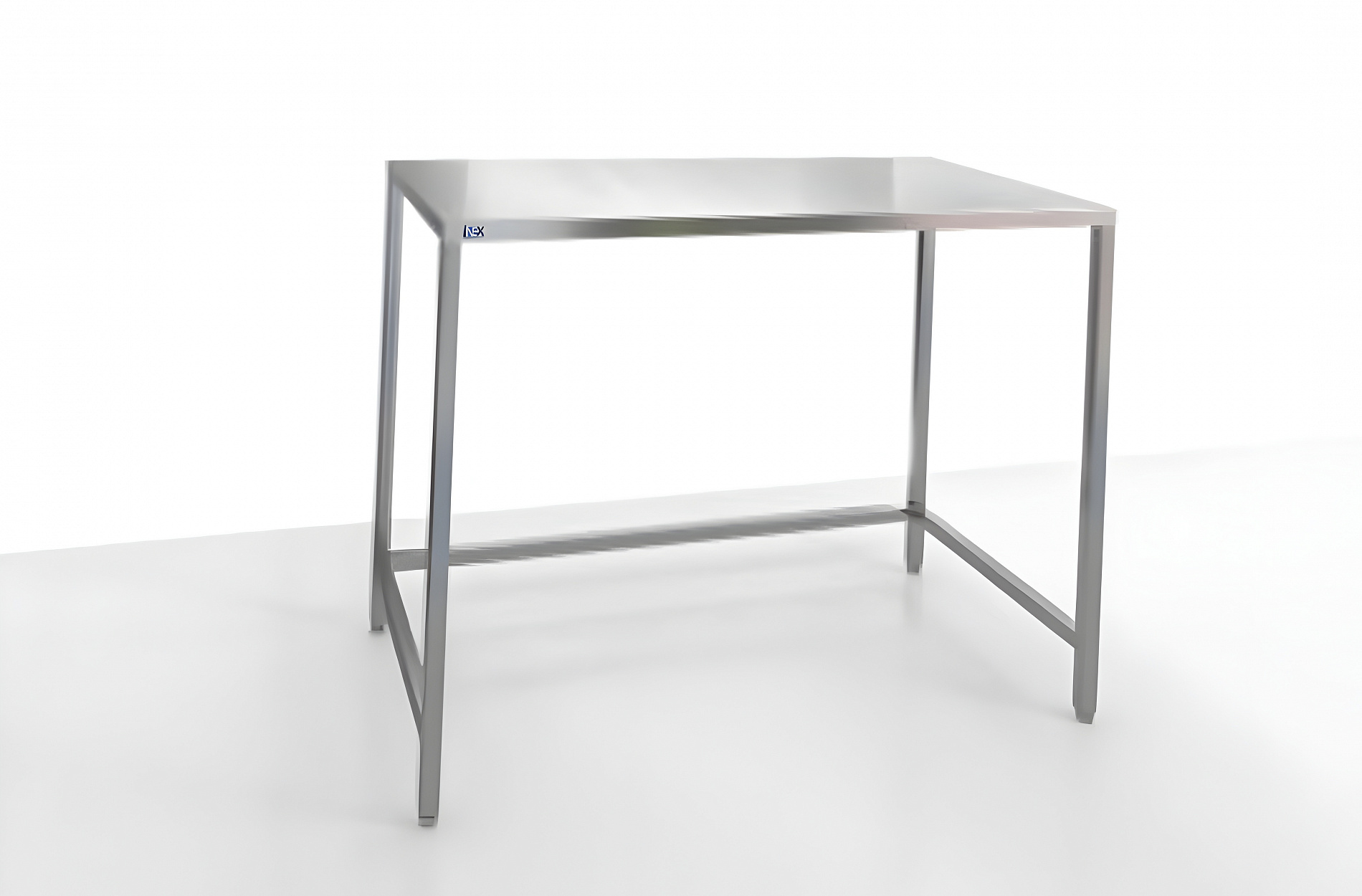

AISI 304 stainless steel table without side and shelf
The INEX flat-top stainless steel worktable is designed for maximum versatility in cleanrooms, laboratories, and high-tech manufacturing zones. By eliminating the rear backsplash, this "island" configuration allows personnel to access the work surface from all sides, making it ideal for collaborative tasks or central room placement. The integrated lower shelf maximizes vertical space, keeping essential tools and materials within reach while maintaining a clear primary workspace.
Construction and Key Features
-
Material Excellence: Standard fabrication uses AISI 304 stainless steel for superior corrosion resistance. For facilities using high-concentration chlorides or aggressive acids, an AISI 316 stainless steel version is available.
-
Island Design: The flat-top surface without a backsplash facilitates seamless integration into open-plan laboratory layouts and allows for the placement of oversized equipment that may overhang the edges.
-
Reinforced Storage: The lower shelf is integrated into the structural frame, providing a stable area for reagents, secondary equipment, or sterile consumables.
-
Rigid Framework: Built with a 30x30x1.5 mm square profile all-welded frame, the table offers exceptional stability and resistance to vibration.
-
Precision Leveling: High-quality screw-adjustable feet ensure the table remains perfectly level on any cleanroom floor surface.
Validation and Compliance
Every unit is manufactured to support the strict quality management systems of the pharmaceutical and biotech sectors:
-
GMP Annex 11: Fully compliant with international medicinal manufacturing standards.
-
GAMP 5 (ISPE): Engineered according to "Good Automated Manufacturing Practice" to ensure long-term reliability and aseptic safety.
-
ISO 14644-4: Optimized for easy decontamination and low particle emission.
Technical Specifications
Professional worktable for GMP/ISO class controlled environments.
|
Property |
Specification |
|
Material Grade |
AISI 304 (Standard) or AISI 316 (Optional) |
|
Frame Profile |
30 x 30 x 1.5 mm |
|
Sheet Thickness |
1.0 mm |
|
Edge Profile |
Flat top (no backsplash) for multi-side access |
|
Construction Type |
All-welded |
|
Leg Support |
Adjustable screw-leveling feet |
Dimensions:
600 x 600 x 900 mm,
600 x 800 x 900 mm,
900 x 600 x 900 mm,
900 x 800 x 900 mm,
1200 x 600 x 900 mm
1500 x 600 x 900 mm,
1500 x 800 x 900 mm,
1800 x 600 x 900 mm,
1800 x 800 x 900 mm.
