Vertical steam sterilizer
Vertical steam sterilizer

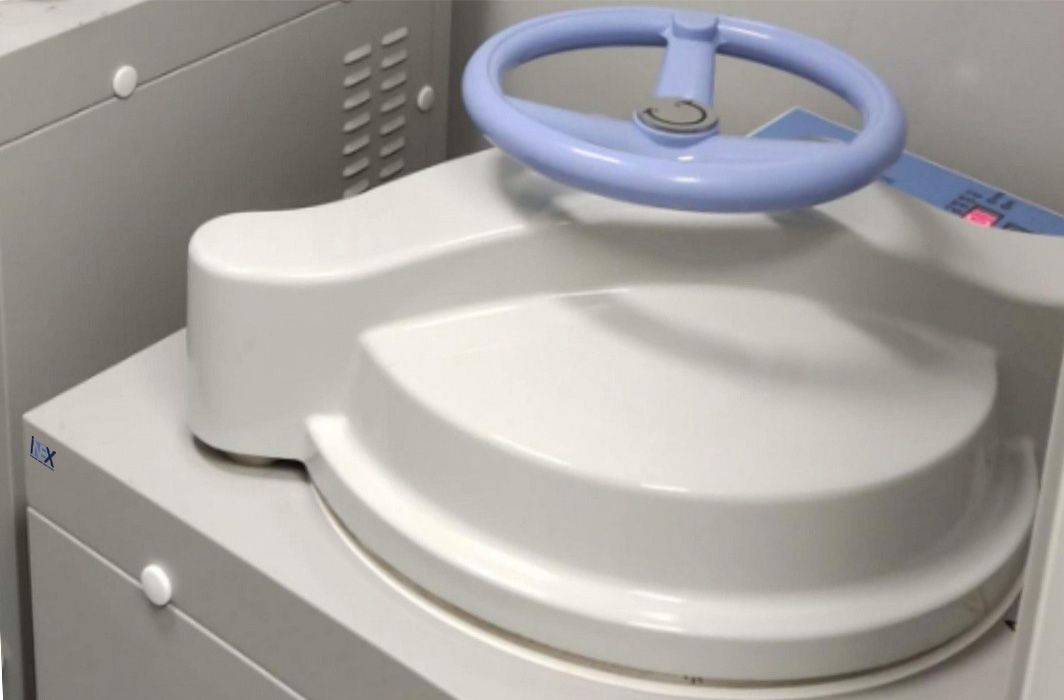

The IVKQ Series Vertical Steam Sterilizer provides reliable sterilization of medical tools, laboratory glassware, and biological fluids using pressurized saturated steam. Designed for use in pharmaceutical, medical, and biotechnological facilities, this automated system ensures consistent thermal performance and high safety standards.
Design and Construction Features
-
Integrated Steam Generation: Steam is generated directly within the housing, eliminating the need for an external steam source.
-
Durable Materials: The sterilization chamber and loading baskets are crafted from polished AISI 304 stainless steel for superior hygiene and corrosion resistance.
-
Advanced Sealing & Safety: The lid features a mechanical lock with a pressure-dependent interlock system and a self-moving silicone gasket to ensure a perfect hermetic seal.
-
User Interface: A microprocessor control system with a LED display allows users to monitor temperature, time, and alarm codes in real-time.
-
Flexible Programming: Includes five fixed programs and two customizable user profiles, including a dedicated drying function.
Technical Performance
The IVKQ series is engineered for high-pressure environments with precise temperature management:
-
Operating Parameters: Reaches working temperatures of 134°C at a nominal pressure of 0.23 MPa.
-
Thermal Accuracy: Temperature non-uniformity within the chamber is maintained at $\leq 2$°C.
-
Automated Cycle: Fully automates all stages: water filling, heating, sterilization, steam exhaust (fast or slow modes), and drying ($50\text{--}120$°C).
-
Maintenance Functions: Supports a temperature-holding mode ($45\text{--}60$°C) for up to 99 minutes.
Comprehensive Safety Systems
-
Overpressure Protection: Automatic pressure relief valve activates if limits are exceeded.
-
Thermal Safety: Protection against overheating and "dry-run" conditions (low water level).
-
Electrical Guarding: Overcurrent protection and integrated audible/visual alarms for all error states.
Validation and Compliance
-
Regulatory Standards: Complies with YY 1007-2010 and national medical device certifications.
-
Pharmaceutical Grade: Validation protocols follow GMP Annex 11 and GAMP 5 (ISPE) guidelines for automated manufacturing.
Model Specifications
|
Characteristic |
IVKQ-50 II |
IVKQ-75 II |
IVKQ-100 II |
IVKQ-120 II |
|
Volume |
50L |
75L |
100L |
120L |
|
Power |
4400W |
4700W |
5200W |
5200W |
|
Net Weight |
80kg |
85kg |
100kg |
120kg |
|
Internal Chamber ($\Phi \times H$) |
$386 \times 515$ mm |
$386 \times 695$ mm |
$386 \times 875$ mm |
$386 \times 1055$ mm |
|
External Dimensions (L×W×H) |
$640 \times 550 \times 980$ mm |
$640 \times 550 \times 1080$ mm |
$640 \times 550 \times 1280$ mm |
$640 \times 550 \times 1380$ mm |
|
Number of Baskets |
1 |
2 |
2 |
3 |
|
Basket Size ($\Phi \times H$) |
$365 \times 360$ mm |
$365 \times 265$ mm |
$365 \times 360$ mm |
|
