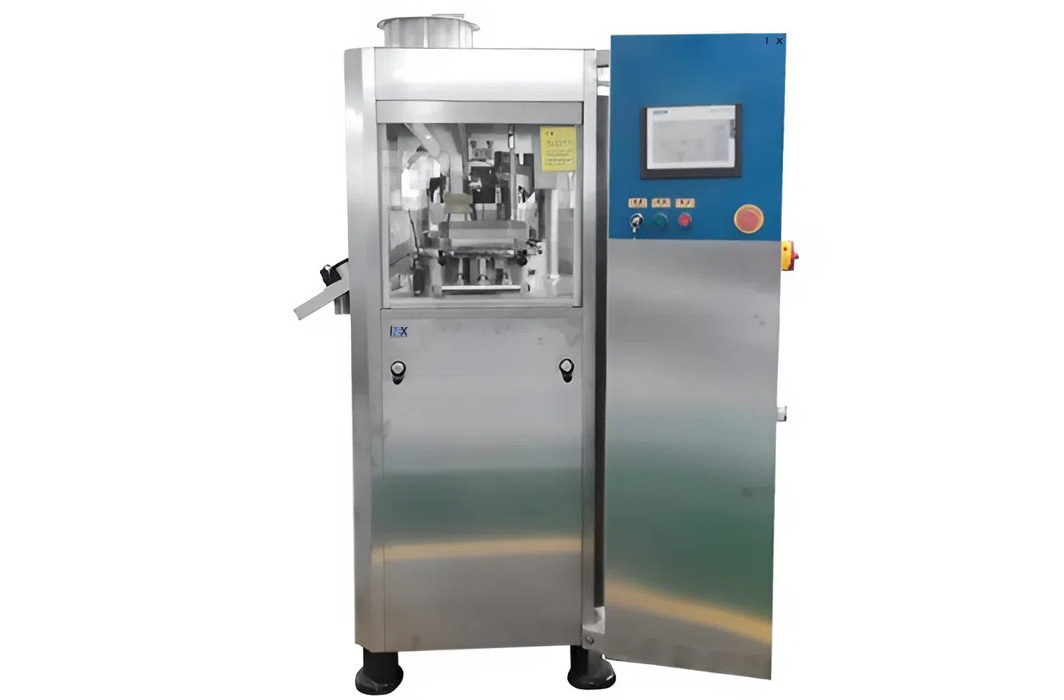

ZPT Series Automatic Rotary Tablet Press (ZPT-15/17/20/25)

The ZPT Series Automatic Rotary Tablet Press is a high-performance solution designed to compress powder mixtures into tablets with uniform mass and exceptional structural integrity. Engineered for high-speed operation, the series features a hermetically sealed housing and wide inspection windows, ensuring process visibility while protecting the operator from dust and noise.

The ZPT series is distinguished by its advanced sealing technology; specialized anti-leakage and dust-proof seals prevent lubricant contamination of the product. Additionally, the integrated forced-feeding system utilizes a direct drive to ensure the die cavities are filled consistently, even when working with materials that have challenging flow characteristics.

Operational Principles

• Loading: The powder mixture is gravity-fed into the main hopper.

• Forced Feeding: A direct-drive paddle system ensures stable and uniform distribution of the material into the dies.

• Pre-Compression: A preliminary squeeze removes air from the powder, preventing capping and stabilizing the tablet "slug."

• Main Compression: High-force punches finalize the tablet to the target hardness and thickness.

• Ejection: Finished tablets are pushed out and directed to the discharge chute.

• Rejection: Integrated sensors allow for the identification and removal of defective tablets (optional configuration).

Key Features and Advantages

• Standardized Tooling: Full support for European standard EU D, B, BB, and BBS type punches and dies.

• Hygienic Integrity: Fully enclosed workspace with advanced seals to prevent cross-contamination and oil leakage into the product zone.

• Forced Feeding System: Direct-drive shaft and paddle design optimize filling efficiency and increase throughput.

• User-Friendly Maintenance: The modular design simplifies the cleaning of components and reduces the time required for format changeovers.

• Regulatory Compliance: Designed and manufactured to exceed GMP, ISO, and FDA requirements for sterile and non-sterile pharmaceutical production.

Technical Specifications

• Tooling Types (EU Standard): D / B / BB / BBS

• Number of Stations: 15 / 17 / 20 / 25 (model dependent)

• Max. Production Capacity (ZPT-25): 118,000 tablets/hour

• Max. Production Capacity (ZPT-15): 70,000 tablets/hour

• Max. Main Compression Force: 80 – 100 kN

• Max. Pre-compression Force: 12 kN

• Max. Tablet Diameter: 11 mm to 25 mm

• Max. Filling Depth: 16 mm to 20 mm

• Max. Shape Size (Oval/Special): Up to 25 mm (model dependent)

• Operational Noise (Idle): < 75 dB(A)
