ALT-B Labeling Machine

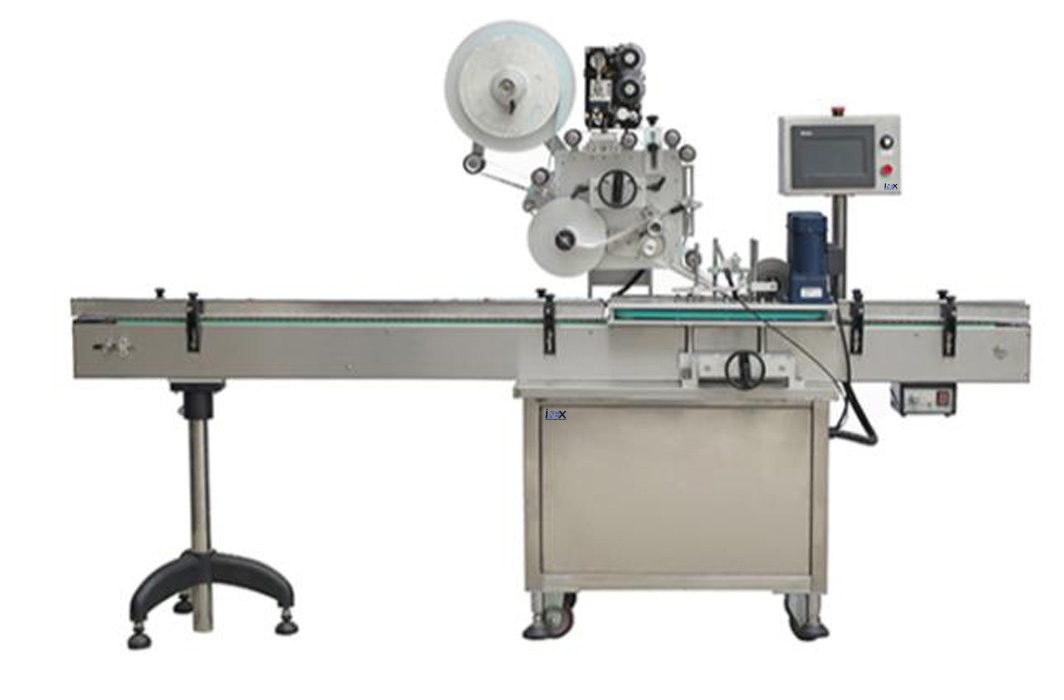

The ALT-B Top Labeling Machine is a specialized solution designed for the automated application of self-adhesive labels onto the upper surfaces of flat and rectangular containers. It is an ideal choice for labeling medicine cartons, cosmetic packs, flat-sided vials, and various other flat-top items.

The machine is built for stability and ease of operation, utilizing a PLC-based control system and a user-friendly HMI touchscreen. Its compact footprint allows for seamless integration into existing production lines, while its reversible conveyor direction (left-to-right or right-to-left) offers maximum flexibility for different facility layouts.

Key Features and Capabilities

• High Precision: Engineered to maintain label alignment and accuracy even during high-velocity production cycles.

• Flexible Orientation: The conveyor system can be configured to match your specific line flow, supporting both left-to-right and right-to-left movement.

• Versatile Sizing: Adjustable guides accommodate a wide range of container widths (up to 100 mm) and lengths (up to 200 mm).

• Industrial Durability: Constructed with high-grade materials to meet the rigorous demands of the pharmaceutical, cosmetic, and chemical industries.

• Smart Interface: Real-time parameter adjustments and diagnostic monitoring via the integrated digital display.

Validation and Regulatory Compliance

The ALT-B is engineered to exceed international standards for pharmaceutical manufacturing:

• GMP Compliance: Designed with easy-to-clean surfaces and pharmaceutical-grade electronics.

• GAMP 5 & GMP Annex 11: Software and hardware validation protocols follow the International Society for Pharmaceutical Engineering (ISPE) guidelines, ensuring data integrity and automated process reliability.

Technical Specifications

• Labeling Speed: 80 – 150 packs/min

• Container Width Range: 20 – 100 mm

• Container Length Range: 20 – 200 mm

• Container Height Range: 15 – 150 mm

• Label Width Range: 15 – 130 mm

• Power Supply: 220V, 50–60 Hz

• Power Consumption: 1000 W

• Conveyor Direction: Left-to-right or Right-to-left (Configurable)

• Equipment Weight: 180 kg

• Overall Dimensions (L×W×H): 1600 × 600 × 1550 mm
